Product Description

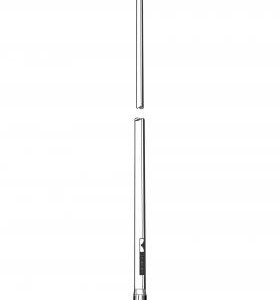

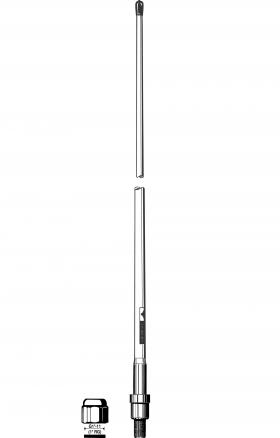

Unity gain, Omnidirectional base station antenna for aircraft band (118-137Mhz)
Product Specifications: Download PDF File
118-137Mhz – Unity gain, Omnidirectional base station antenna for aircraft band
Additional Information
| Model | CXL 3-1 |
|---|---|
| Antenna Type | ½ λ coaxial dipol, broad-banded |
| Frequency | Covering: 118 – 137 MHz |
| Impedance | Nom. 50 Ω |
| Radiation | Omnidirectional |
| Polarization | Vertical |
| Gain | 2 dBi 0 dBd |
| Bandwidth | 19 MHz |
| SWR | ≤ 1.75 |
| Max. Power | 150 W |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Connector | UHF-female (fitting PL-259) |
| Wind Surface | 0.023 m² |
| Wind Load | 29 N @ 160 km/h |
| Max. Wind Speed | Tested to 200 km/h |
| Color | Marine white |
| Materials | Radome: Polyurethane-coated glass fibre Mounting hardware: Bright chromed brass |
| Total Height | Approx. 1.5 m |
| Weight | Approx. 0.85 kg |
| Mounting | On 1” RG (G1” – 11) threaded water pipe or on optional mounting brackets |
