Product Description

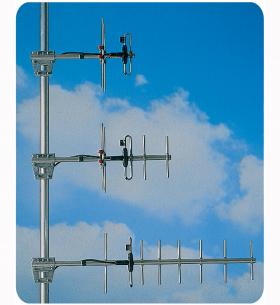

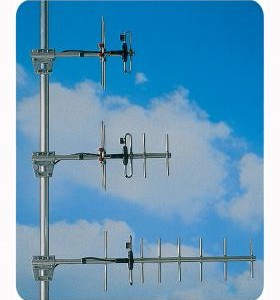

Directional antennas with 3 & 7 & 10 dBd gain for 450Mhz band
Product Specifications: Download PDF File
Directional antennas with 3 & 7 & 10 dBd gain for 450Mhz band
Additional Information
| Model | R 70-3/R 70-7/R 70-10 |
|---|---|
| Antenna Type | 2-element Yagi / 4-element Yagi / 8-element Yagi / 8-element Yagi |
| Frequency | R 70-3/s: 380-420MHz R 70-3/l: 390-430MHz R 70-3/h: 420-470MHz / R 70-7/l: 380-430MHz R 70-7/h: 420-470MHz / R 70-10/l: 380-430MHz R 70-10/h: 420-470MHz / R 70-10/l BA: 380-430MHz |
| Impedance | 50 Ω |
| Polarization | Vertical or horizontal |
| Gain | R 70-3: 5 dBi 3 dBd / R 70-7: 9 dBi 7 dBd / R 70-10: 12 dBi 10 dBd |
| Front To Back Ratio | R 70-3: 12 dB / R-70-7: 15 dB / R 70-10: 15.1 dB Typ. better than 19 dB |
| Half Power Beamwidth | R 70-3: E-plane: 75° H-plane: 150° / R 70-7: E-plane: 60° H-plane: 90° / R-70-10: E-plane: 51° H-plane: 58° |
| Bandwidth | 40 – 50 MHz |
| SWR | ≤ 1.5 |
| Max. Power | 150 W |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Temp. Range | -25° C → +60° C |
| Connector | 3 m tail of RG 213 terminated with N-female connector |
| Wind Surface | R 70-3: 0.046 m² / R 70-7: 0.061 m² / R 70-10: 0.080 m² |
| Wind Load | R 70-3: 50 N @ 160 km/h / R 70-7: 80 N @ 160 km/h / R 70-10: 102 N @ 160 km/h |
| Color | R 70-3/7/10: Aluminium / R 70-10 BA: Black anodized |
| Materials | Elements/Boom/Saddle clamps: Aluminium alloys. Fittings: Stainless steel. Bracket: Hot-dipped galvanized steel |
| Boom Length | R 70-3: Approx. 0.65 m / R 70-7: Approx. 0.9 m / R 70-10: Approx. 1.4 m |
| Boom Dia. | 31.8 mm |
| Max. Element Length | 0.43 m |
| Dia. of Elements | 13 mm |
| Weight | R 70-3: Approx. 3.1 kg / R 70-7: Approx. 3.4 kg / R 70-10: Approx. 3.7 kg |
| Mounting | Supplied with mast bracket suiting 30 – 58 mm dia. mast tube |
