Product Description

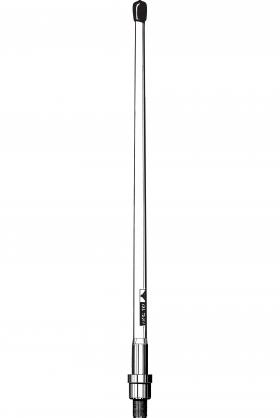

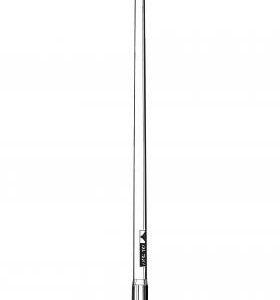

Unity gain, Omnidirectional base station antenna in 3 bands (380-510Mhz)
Product Specifications: Download PDF File
380-510Mhz – Unity gain, Omnidirectional base station antenna in 3 bands
Additional Information
| Model | CXL 70-1/… |
|---|---|
| Antenna Type | ½ λ coaxial dipole, broad-banded |
| Frequency | CXL 70-1/l : 380 – 430 MHz CXL 70-1/h : 420 – 470 MHz CXL 70-1/hs: 460 – 510 MHz |
| Impedance | Nom. 50 Ω |
| Radiation | Omnidirectional |
| Polarization | Vertical |
| Gain | 2 dBi 0 dBd |
| Bandwidth | 50 MHz |
| SWR | ≤ 1.5 |
| Max. Power | 150 W |
| Temp. Range | -30°C → +70°C |
| Connector | N-female |
| Wind Surface | 0.0093 m² |
| Wind Load | 12 N @ 160 km/h |
| Color | Marine white |
| Materials | Shroud: Polyurethane-coated glass fibre Mounting bracket: Chromed brass |
| Total Height | Approx. 560 mm |
| Dia. In Top End | 12 mm |
| Dia. In Bottom End | 16 mm |
| Weight | Approx. 350 g |
| Mounting | On 1” RG (G1” – 11) threaded water pipe or on optional mounting brackets |
