380-470Mhz – 5 dBd gain, Omnidirectional base station antenna in 4 bands

SKU: CXL 70-5c. Category: . Tags: , , .

Product Description

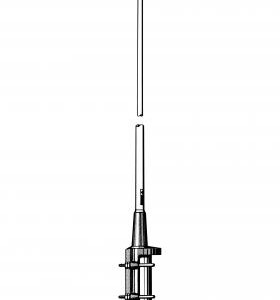

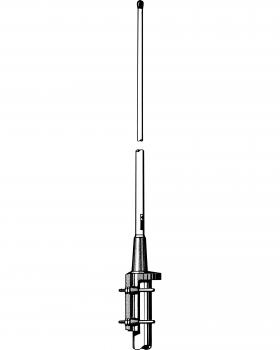

5 dBd gain, Omnidirectional base station antenna in 4 bands (380-470Mhz)

Product Specifications: Download PDF File

Additional Information

Model

CXL 70-5C/…

Antenna Type

Collinear, broad-banded

Frequency

30 MHz wide frequency segments within 380 – 470 MHz.

Impedance

Nom. 50 Ω

Radiation

Omnidirectional

Polarization

Vertical

Gain

7 dBi 5 dBd

Half Power Beamwidth

18°

Bandwidth

30 MHz

SWR

/s: < 1.5 @ 380 – 400 MHz, < 2 @ 400 – 410 MHz /f: < 1.5 @ 406 – 426 MHz, < 1.7 @ 426 – 430 MHz /l: < 1.5 @ 420 – 440 MHz, < 2 @ 440 – 450 MHz /h: < 1.5 @ 440 – 460 MHz, < 2 @

Max. Power

150 W

Antistatic Protection

All metal parts DC-grounded (Connector shows a DC-short)

Temp. Range

-35°C → +70°C

Connector

N-female

Wind Surface

0.045 m²

Wind Load

57 N @ 160 km/h

Color

Marine white

Materials

Shroud: Polyurethane-coated glass fibre Mounting bracket: Seawater resistant aluminium, epoxy-coated Clamps: Stainless steel

Total Height

Approx. 2.2 m (dep. on freq.)

Dia. In Top End

13 mm

Dia. In Bottom End

25 mm

Weight

Approx. 2.8 kg

Mounting

On 27 – 65 mm dia. mast tube
