Product Description

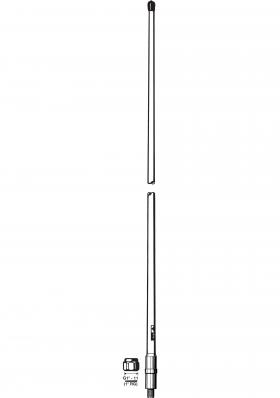

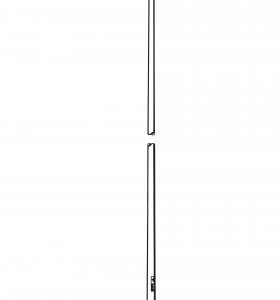

3 dBd gain, Omnidirectional base station antenna in 4 bands (380-470Mhz)
Product Specifications: Download PDF File
380-470Mhz – 3 dBd gain, Omnidirectional base station antenna in 4 bands
Additional Information
| Model | CXL 70-3/… |
|---|---|
| Antenna Type | Coaxial, broad-band |
| Frequency | CXL 70-3/s : 380 – 410 MHz CXL 70-3/f : 406 – 430 MHz CXL 70-3/l : 420 – 450 MHz CXL 70-3/h: 440 – 470 MHz |
| Impedance | Nom. 50 Ω |
| Polarization | Vertical |
| Gain | 5 dBi 3 dBd |
| Bandwidth | 30 MHz |
| SWR | ≤ 1.5 |
| Max. Power | 150 W |
| Temp. Range | -30°C → +70°C |
| Connector | N-female |
| Wind Surface | 0.0337 m² |
| Wind Load | 43 N @ 160 km/h |
| Color | Marine white |
| Materials | Shroud: Polyurethane-coated glass fibre Mounting bracket: Chromed brass |
| Total Height | Approx. 1.3 m (dep. on freq.) |
| Dia. In Top End | 16 mm |
| Dia. In Bottom End | 23 mm |
| Weight | Approx. 1.2 kg |
| Mounting | On 1” RG (G1” – 11) threaded water pipe or on optional mounting brackets |
