Product Description

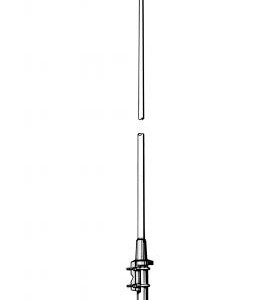

6 dBd Base Station and Marine Antenna for the 900 MHz Band
Product Specifications: Download PDF File
6 dBd Base Station and Marine Antenna for the 900 MHz Band
Additional Information
| Model | CXL 900-6LW/… |
|---|---|
| Antenna Type | Collinear, broad-band |
| Frequency | Models within 824 – 960 MHz |
| Impedance | Nom. 50 Ω |
| Radiation | Omnidirectional |
| Polarization | Vertical |
| Gain | 8 dBi 6 dBd |
| Half Power Beamwidth | 14° |
| Bandwidth | 70 – 80 MHz |
| SWR | ≤ 1.5 |
| Max. Power | 150 W |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Temp. Range | -30°C → +70°C |
| Connector | N-female |
| Wind Surface | Approx. 0.028 m² |
| Wind Load | Approx. 35 N @ 160 km/h |
| Color | Marine white |
| Materials | Shroud: Polyurethane-coated glass fibre Mounting bracket: Seawater resistant aluminium, epoxy-coated Clamps: Stainless steel |
| Total Height | 1.5 – 2.1 m (dep. on freq.) |
| Dia. In Top End | 20 mm |
| Dia. In Bottom End | 23 mm |
| Weight | Approx. 1.4 kg |
| Mounting | On 16 to 54 mm dia. mast tube |
