Product Description

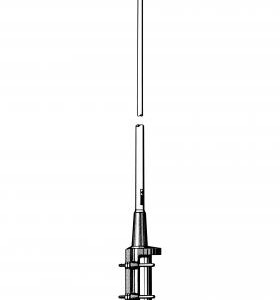

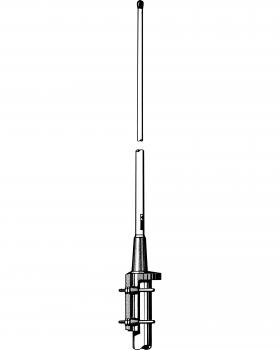

0 dBd gain, Broad band station & marine antenna (470-870Mhz)
Product Specifications: Download PDF File
470-870Mhz – 0 dBd gain, Broad band station & marine antenna
Additional Information
| Model | CXL 470-870 |
|---|---|
| Antenna Type | Coaxial, collinear antenna, broad-banded |
| Frequency | 470 – 870 MHz |
| Impedance | Nom. 50 Ω |
| Polarization | Vertical |
| Gain | 2 dBi 0 dBd ± 3 dB |
| Bandwidth | ≥ 400 MHz |
| SWR | ≤ 2.0 |
| Max. Power | 100 W |
| Temp. Range | -30° C → +70° C |
| Connector | N-female |
| Wind Surface | Approx. 0.013 m² |
| Wind Load | Approx. 20 N @ 160 km/h |
| Color | Marine white |
| Materials | Shroud: Polyurethane-coated glass fibre Mounting bracket: Chromed brass |
| Total Height | Approx. 600 mm |
| Dia. In Top End | 22.5 mm |
| Dia. In Bottom End | 23 mm |
| Weight | Approx. 350 g |
| Mounting | On 1” RG (G1” – 11) threaded water pipe or on optional mounting brackets |
