Product Description

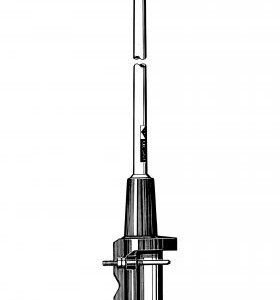

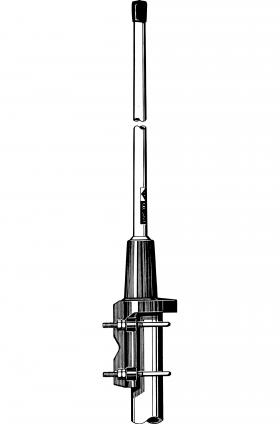

3 dBd Base Station and Marine Antenna for the 900 MHz Band
Product Specifications: Download PDF File
3 dBd Base Station and Marine Antenna for the 900 MHz Band
Additional Information
| Model | CXL 900-3LW/… |
|---|---|
| Antenna Type | Collinear, broad-banded |
| Frequency | Models within 824 – 960 MHz |
| Impedance | Nom. 50 Ω |
| Radiation | Omnidirectional |
| Polarization | Vertical |
| Gain | 5 dBi 3 dBd |
| Half Power Beamwidth | 30° |
| Bandwidth | 70 – 80 MHz |
| SWR | ≤ 1.5 |
| Max. Power | 100 W |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Temp. Range | -30°C → +70°C |
| Connector | N-female |
| Wind Surface | Approx. 0.021 m² |
| Wind Load | 27 N @ 160 km/h |
| Color | Marine white |
| Materials | Shroud: Polyurethane-coated glass fibre Mounting bracket: Seawater resistant aluminium, epoxy-coated Clamps: Stainless steel |
| Total Height | Approx. 700 mm (dep. on freq.) |
| Dia. In Top End | 12 mm |
| Dia. In Bottom End | 16 mm |
| Weight | Approx. 660 g |
| Mounting | On 16 to 54 mm dia. mast tube |
