Product Description

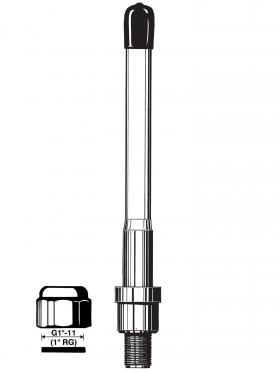

Unity Gain Base Station and Marine Antenna for Mounting on Threaded 1” Water pipe
Product Specifications: Download PDF File
Unity Gain Base Station and Marine Antenna for Mounting on Threaded 1” Water pipe
Additional Information
| Model | CXL 2400-1/… |
|---|---|
| Antenna Type | ½ λ coaxial dipole, broad-banded |
| Frequency | Models within 2300 – 2700 MHz |
| Impedance | Nom. 50 Ω |
| Polarization | Vertical |
| Gain | 2 dBi 0 dBd |
| Bandwidth | ≥ 200 MHz @ SWR ≤ 2.0 |
| SWR | ≤ 2.0, typ. ≤ 1.5 |
| Max. Power | 100 W |
| Temp. Range | -30°C → +70°C |
| Connector | N-female |
| Wind Surface | Approx. 0.006 m² |
| Wind Load | Approx. 8 N @ 160 km/h |
| Color | Marine white |
| Materials | Shroud: Polyurethane-coated glass fibre Mounting bracket: Chromed brass |
| Total Height | Approx. 230 mm |
| Dia. In Top End | 14 mm |
| Dia. In Bottom End | 16 mm |
| Weight | Approx. 180 g |
| Mounting | On 1” RG (G1” – 11) threaded water pipe or on optional mounting brackets |
